With Eccentric Sleeve UE202 , UE202/YA Insert Ball Bearing Farm Machinery Accessories
UE202 Bearing Specification :
| Model Number | UE202/YA |
| Part Name | Insert Ball Bearin |
| Dimensions(mm)(d*D*b) | 15mm X 40mm X 19.1mm |
| Weight / Mass ( KG ) | 0.13kg |
| Material | Gcr15 Chrome Steel |
| Precision Rating | ABEC-3 / ABEC-5 |
| Brand | FSKG / KBE / OEM / Any Brand |
| Original Country Show | CHINA ( FSKG) |

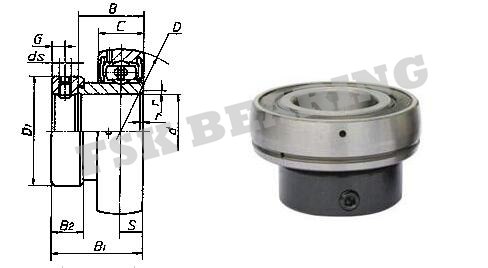

UE202 Bearing Drawing

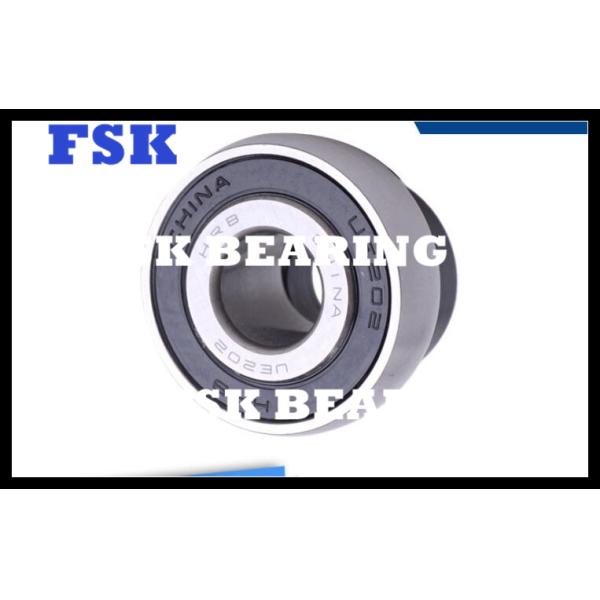

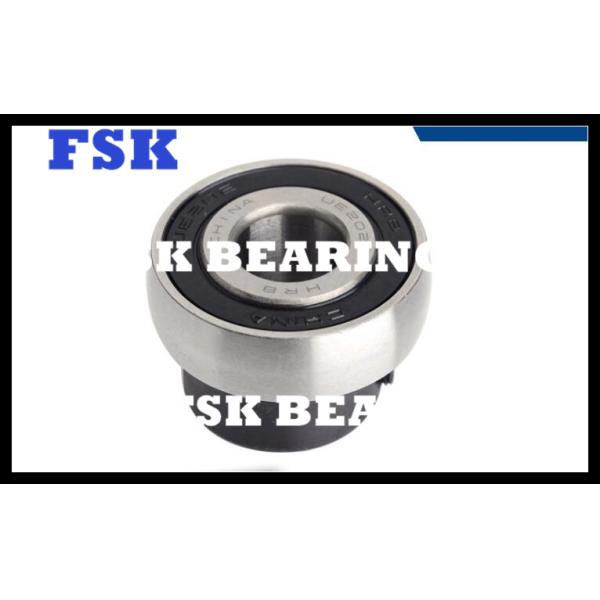

UE202 Bearing Photos :
Same Series Other Bearings We Do
| Bearing | Size(mm) | Mass(Kg) | Dynamic Cr(KN) | Static Cor(KN) | Limited Speed (r/min) | Eccentric Sleeve |
| New Model | Old Model | d | D | B1 | B | New Model | Old Model |
| UE201/YA | 390201K | 12 | 40 | 28.6 | 19.1 | 0.14 | 7.36 | 4.48 | 4500 | E201 | P501 |
| UE202/YA | 390202K | 15 | 40 | 28.6 | 19.1 | 0.13 | 7.36 | 4.48 | 4500 | E202 | P502 |
| UE203/YA | 390203K | 17 | 40 | 28.6 | 19.1 | 0.12 | 7.36 | 4.48 | 4500 | E203 | P503 |
| UE204/YA | 390204K | 20 | 47 | 31 | 21.5 | 0.15 | 9.88 | 6.2 | 4000 | E204 | P504 |
| UE205/YA | 390205K | 25 | 52 | 31 | 21.5 | 0.22 | 10.78 | 6.98 | 3400 | E205 | P505 |
| UE206/YA | 390206K | 30 | 62 | 35.7 | 23.8 | 0.3 | 14.97 | 10.04 | 2800 | E206 | P506 |
| UE207/YA | 390207K | 35 | 72 | 38.9 | 25.4 | 0.5 | 19.75 | 13.67 | 2400 | E207 | P507 |
| UE208/YA | 390208K | 40 | 80 | 43.7 | 30.2 | 0.67 | 22.71 | 15.94 | 2200 | E208 | P508 |
